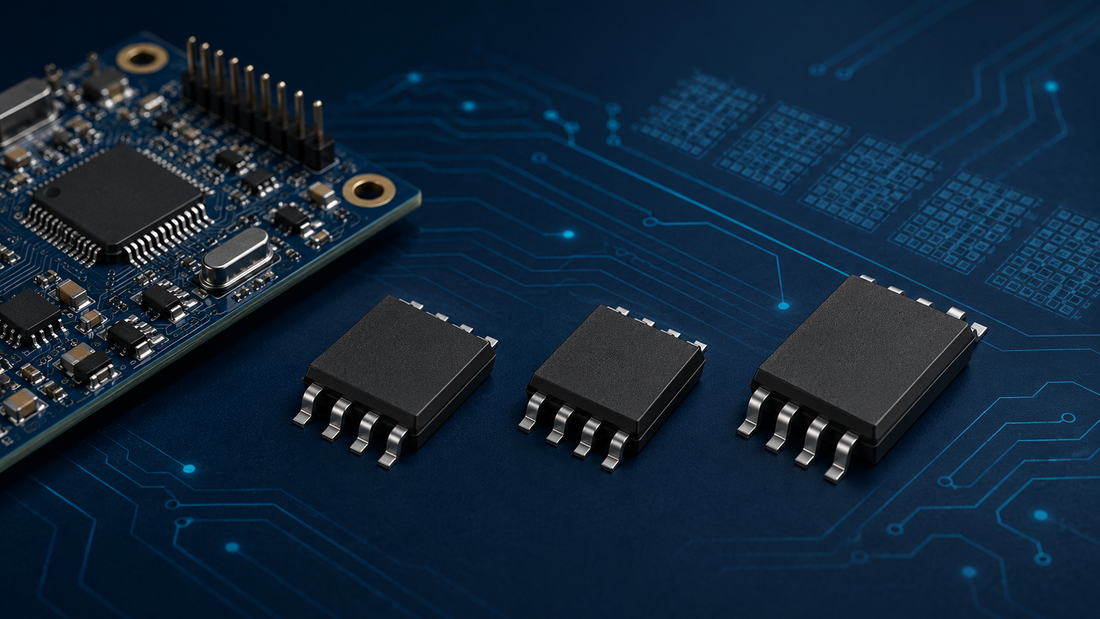

Generic QSPI NOR flash packages beside an embedded controller board for memory selection comparison

W25Q64JVSSIM vs W25Q64JVSSIQ vs W25Q128JVSIQ: Flash Memory Selection Guide

W25Q64JVSSIM, W25Q64JVSSIQ and W25Q128JVSIQ are Winbond W25Q-JV 3 V serial NOR Flash orderable part numbers. They share a 2.7 V to 3.6 V supply range, an industrial –40°C to +85°C temperature range, a 133 MHz single-transfer-rate listing and an SOP-8, 208-mil package. They are not identical, however. The first two provide 64 Mbit, the W25Q128 device provides 128 Mbit, and Winbond’s official selection guide lists a 66 MHz double-transfer-rate capability for W25Q64JVSSIM but not for the two “IQ” parts in this comparison.

For purchasing and engineering teams, the safest approach is to decode the entire part number and confirm the host controller’s command set. Matching voltage and footprint is only the beginning.

Quick comparison

Parameter W25Q64JVSSIM W25Q64JVSSIQ W25Q128JVSIQ
Density 64 Mbit (8 MiB) 64 Mbit (8 MiB) 128 Mbit (16 MiB)
STR frequency in Winbond guide 133 MHz 133 MHz 133 MHz
DTR frequency in Winbond guide 66 MHz Not listed Not listed
Supply 2.7 V to 3.6 V 2.7 V to 3.6 V 2.7 V to 3.6 V
Operating temperature –40°C to +85°C –40°C to +85°C –40°C to +85°C
Package SOP-8, 208 mil SOP-8, 208 mil SOP-8, 208 mil
Interface family SPI / Dual / Quad SPI / Dual / Quad SPI / Dual / Quad
Primary selection issue DTR-capable 64 Mbit variant STR 64 Mbit variant STR 128 Mbit capacity

MiB values above are binary capacities derived from the manufacturer’s Mbit density: 64 Mbit equals 8 MiB and 128 Mbit equals 16 MiB.

W25Q64JVSSIM versus W25Q64JVSSIQ

These two parts have the same density, voltage, listed STR speed, industrial temperature range and SOP-8 208-mil package. The meaningful suffix difference is functional: Winbond’s official product selection guide gives W25Q64JVSSIM a 66 MHz DTR entry, while the W25Q64JVSSIQ row has no DTR frequency.

That does not mean the IM part should be substituted blindly into an IQ-based design. The host may initialize status registers, select I/O modes, set dummy cycles, read SFDP data or issue identification commands. Production programming tools may also select algorithms by exact device ID. Review the correct Winbond datasheet for the suffix being purchased and test the boot sequence, read modes, program/erase operations, protection settings, deep power-down behavior and recovery after reset or power cycling.

If the application uses only an STR SPI mode supported by both variants, the IM device may look straightforward to evaluate. It still requires approval because default settings and supported command paths can matter. If the application intentionally uses DTR, the IQ orderable part should not be assumed to provide it merely because package and density match.

W25Q64JV versus W25Q128JV: capacity changes system behavior

Moving from 64 Mbit to 128 Mbit doubles available storage from 8 MiB to 16 MiB. The larger capacity may support a bigger firmware image, dual-image update scheme, additional assets or a larger data partition. But capacity is embedded in several layers of a product.

First, the PCB footprint must be checked against the official package drawing even though all three selection-guide rows say SOP-8 208 mil. Second, firmware must recognize the exact JEDEC identification returned by the device. Third, the linker map, bootloader, file system, flash translation layer or partition table must be reviewed for the new address limit. Boundary tests should cover the last valid address, wrap behavior, erased-state checks and image-signing or checksum ranges.

The 128 Mbit device is 16 MiB, which still fits within a 24-bit byte-address space, but that mathematical fact does not prove software compatibility. Controllers and programmers may apply device-specific erase geometry, timing, protection-bit or command tables. Use the manufacturer datasheet and the programming-tool vendor’s exact-device support list.

Common features that still need verification

Winbond describes W25Q-JV as a 3 V QSPI NOR family supporting single, dual and quad modes, execute-in-place, OTP and deep power-down features. Those family-level capabilities are useful for shortlisting, but an orderable suffix and density can have its own supported instruction set. Design documentation should identify which read opcode, bus width, clock mode, dummy cycles and maximum clock are actually used.

Do not set the interface clock from the 133 MHz headline alone. Maximum frequency can depend on read command, supply, output loading, dummy cycles and timing mode. Board trace quality and controller timing also influence margin. Qualify at temperature and voltage corners.

Protection behavior deserves equal attention. Before migration, record the expected state of block-protection bits, status-register write protection, OTP/security regions and any lock mechanism. A firmware update path that works on an unprotected engineering sample can fail when production protection policy is enabled.

For broader supplier, traceability, alternate-part and approval controls, use our electronic component BOM sourcing process alongside the device-specific checks below.

Procurement verification checklist

  • Match every character of the MPN; do not collapse SSIM, SSIQ and SIQ into a generic “W25Q-JV.”
  • Confirm density in both Mbit and bytes: 64 Mbit/8 MiB or 128 Mbit/16 MiB.
  • Confirm 2.7 V to 3.6 V operation and –40°C to +85°C grade.
  • Confirm SOP-8 208-mil body and the exact manufacturer package drawing.
  • State whether firmware uses STR only or requires the 66 MHz DTR capability listed for W25Q64JVSSIM.
  • Verify JEDEC ID handling, SFDP parsing, read opcodes, dummy cycles and Quad Enable configuration.
  • Check page-program, sector/block erase and timeout assumptions against the exact datasheet.
  • Verify programmer and in-circuit programming support for the full orderable MPN.
  • Test protection, reset, power-down and brownout recovery.
  • Require engineering sign-off for any density or suffix change.

FAQ

What is the main difference between W25Q64JVSSIM and W25Q64JVSSIQ?
Winbond’s selection guide lists both as 64 Mbit, 133 MHz STR, 3 V industrial SOP-8 parts, but lists 66 MHz DTR for the IM part and no DTR value for the IQ part.

Does W25Q128JVSIQ have twice the storage?
Yes. Its published density is 128 Mbit versus 64 Mbit, corresponding to 16 MiB versus 8 MiB.

Are all three footprint-compatible?
The selection guide lists SOP-8 208 mil for all three. Confirm land pattern, package drawing and pin functions from the exact datasheets before treating the footprint as approved.

Can firmware written for a 64 Mbit part use the 128 Mbit part automatically?
Not necessarily. Identification handling, partition limits, erase assumptions, protection and programmer support must be validated.

Does the “M” suffix mean a different temperature grade?
The official selection guide lists both W25Q64JVSSIM and W25Q64JVSSIQ at –40°C to +85°C. In this comparison, the documented distinction is DTR capability, not the published temperature range.

Engineering boundary

This article does not declare these parts to be direct replacements. Use the latest Winbond datasheet for the exact density and suffix, the host-controller specification, programmer support documentation and full boot/program/erase testing before approving a BOM change.
